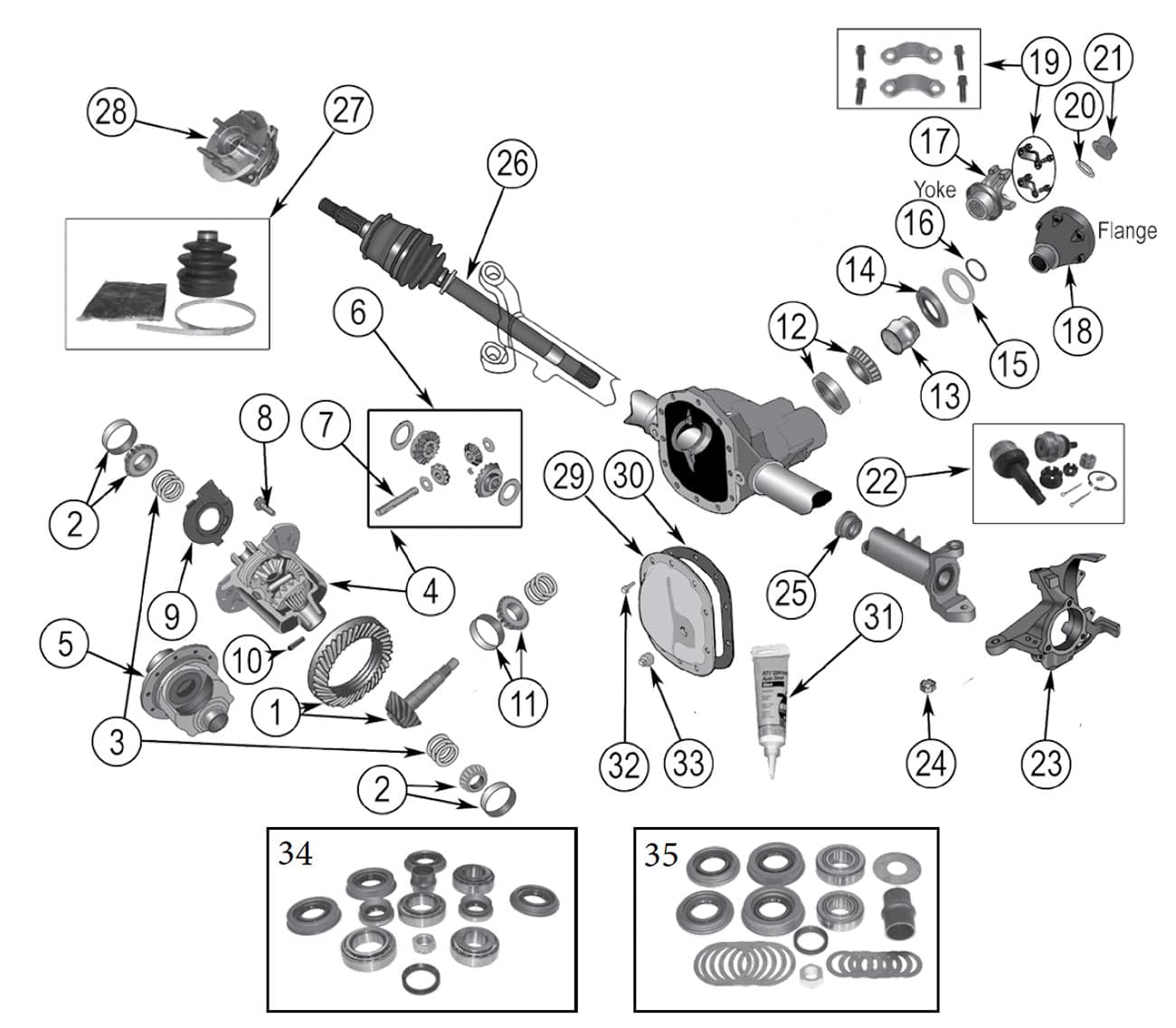

01 kroonwiel en pignon set Grand Cherokee WJ
Ring and pinion set.
02 differentieelhuislagers Grand Cherokee WJ
Differential bearing kit
02 differentieelhuislagers Grand Cherokee WJ
Differential bearing kit
03 differentieelhuislager shim set dana 30 Grand Cherokee WJ
Shim set, carrier.
04 differentieelhuisset dana 30 Grand Cherokee WJ
Case assembly, differential.
05 differentieelhuis vooras Dana 30 Grand Cherokee WJ
Differential case.
06 satellietenset dana 30 Grand Cherokee WJ
Gear set, differential.
07 as differentieelhuis dana 30 Grand Cherokee WJ
Shaft, differential
08 kroonwielbout dana 30 Grand Cherokee WJ
Bolt, ring gear.
09 plenum dana 30 vooras met variolock Grand Cherokee WJ
Plenum, differential.
10 stift borging as satellieten dana 30 Grand Cherokee WJ
Pin, differential shaft
11 Pignonaslager binnen voorcardan Grand Cherokee WJ dana 30
Pignonaslager binnenkant voorcardan. Pinion Inner Bearing Kit.
12 pignonaslager buiten voorcardan Grand Cherokee WJ dana 30
Bearing set, pinion.
13 krimpbus dana 30 Grand Cherokee WJ
Pinion spacer, crush.
14 pignonaskeerring dana 30 Grand Cherokee WJ
Seal, pinion.
16 stofring pignonas dana 30 buiten Grand Cherokee WJ
O-Ring, pinion flange.
18 pignonas flens dana 30 Grand Cherokee WJ
Flange, driveshaft with CV style drive shaft.
15 pignonas spatring buitenkant Grand Cherokee WJ dana 30
Slinger, Pinion.
19 kruisstuk bevestiging Grand Cherokee WJ
Strap and bolt kit
21 moer borging pignonas Grand Cherokee WJ Dana 30
Nut, pinion.
20 borgring vooras dana 30 Grand Cherokee WJ
Washer, pinion
22 fuseekogelset dana 30 Grand Cherokee WJ
Ball joint kit.
23 fuseelichaam dana 30 Grand Cherokee WJ
Knuckle, steering/Achsschenkel
24 moer borging pignonas dana 30 Grand Cherokee WJ
Bolt, pinion flange.
25 keerring steekas in voordifferentieel dana 30 Grand Cherokee WJ
Seal, axle.
26 steekas dana 30 Grand Cherokee WJ
Axle assembly.
27 aandrijfashoes dana 30 Grand Cherokee WJ
Boot kit, CV axle joint.
28 naaf voorwiel inclusief lager dana 30 Grand Cherokee WJ
Hub assembly.
29 differentieel deksel dana 30 Grand Cherokee WJ
Cover, differential.
30 pakking differentieeldeksel dana 30 vooras Grand Cherokee WJ
Differential cover gasket.
vloeibare pakking zwart
Sealant black
32 differentieeldekselbout dana 30 Grand Cherokee WJ
Bolt, differential cover
33 plug differentieelhuis dana 30 Grand Cherokee WJ
Plug, differential cover.
34 reparatieset differentieel en steekassen dana 30 Grand Cherokee WJ
Bearing en seal kit.
35 pignon lagerset dana 30 Grand Cherokee WJ
pinion bearing kit
